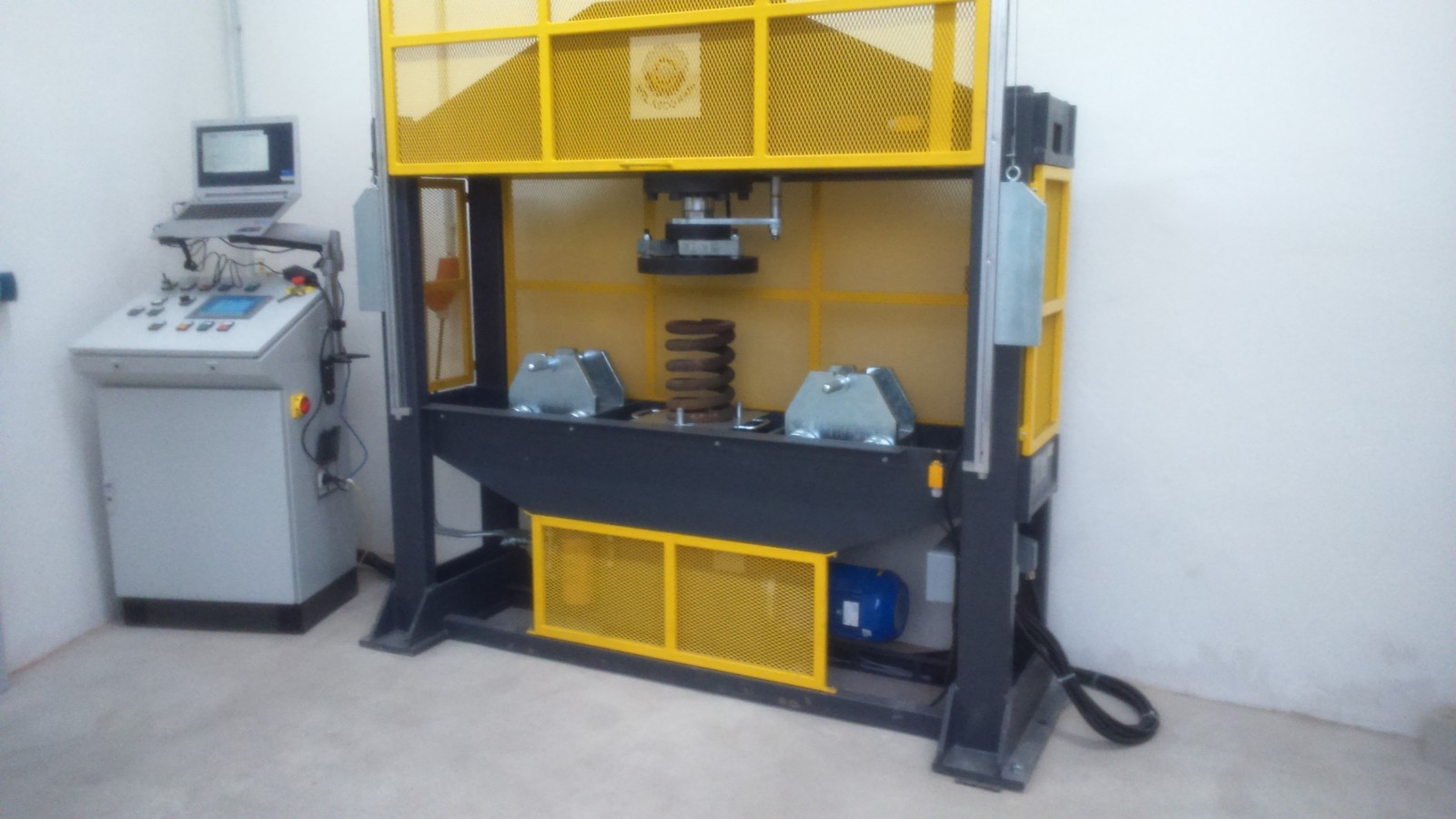

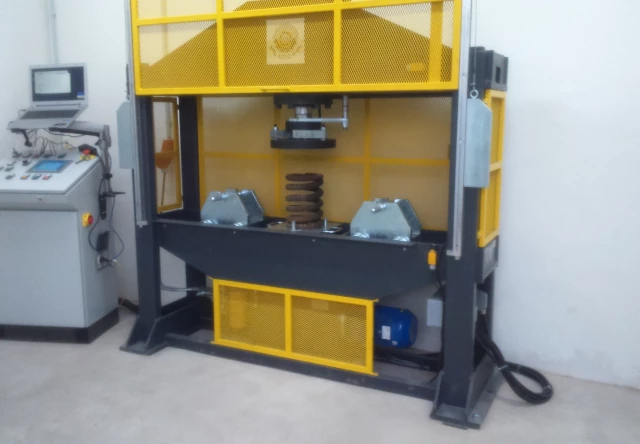

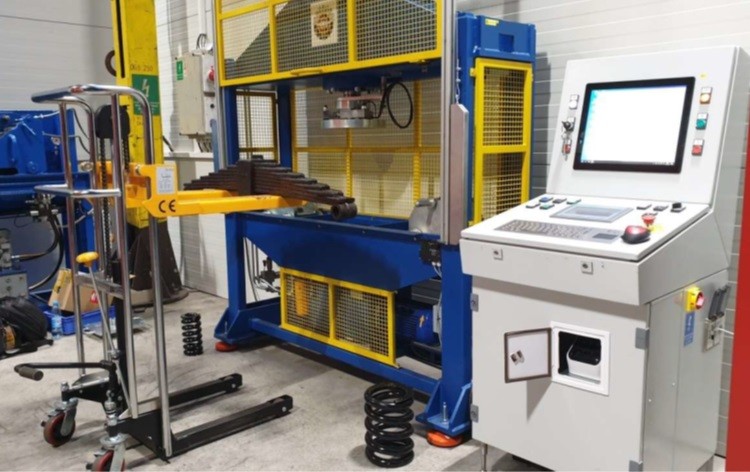

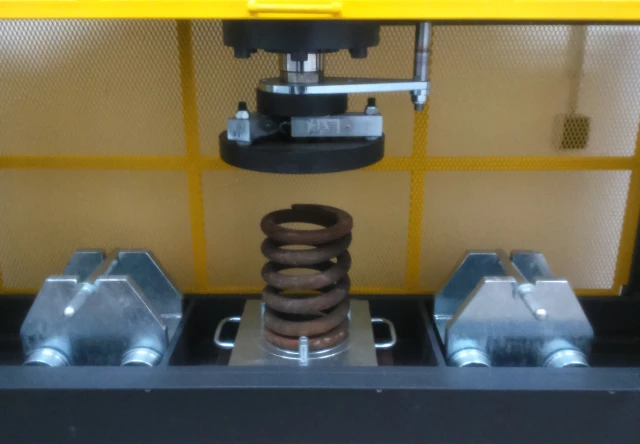

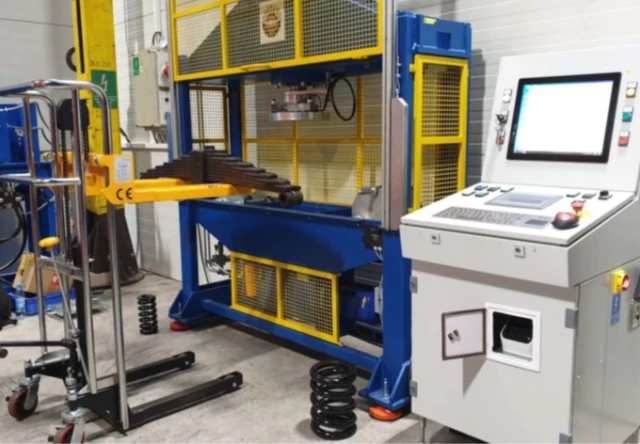

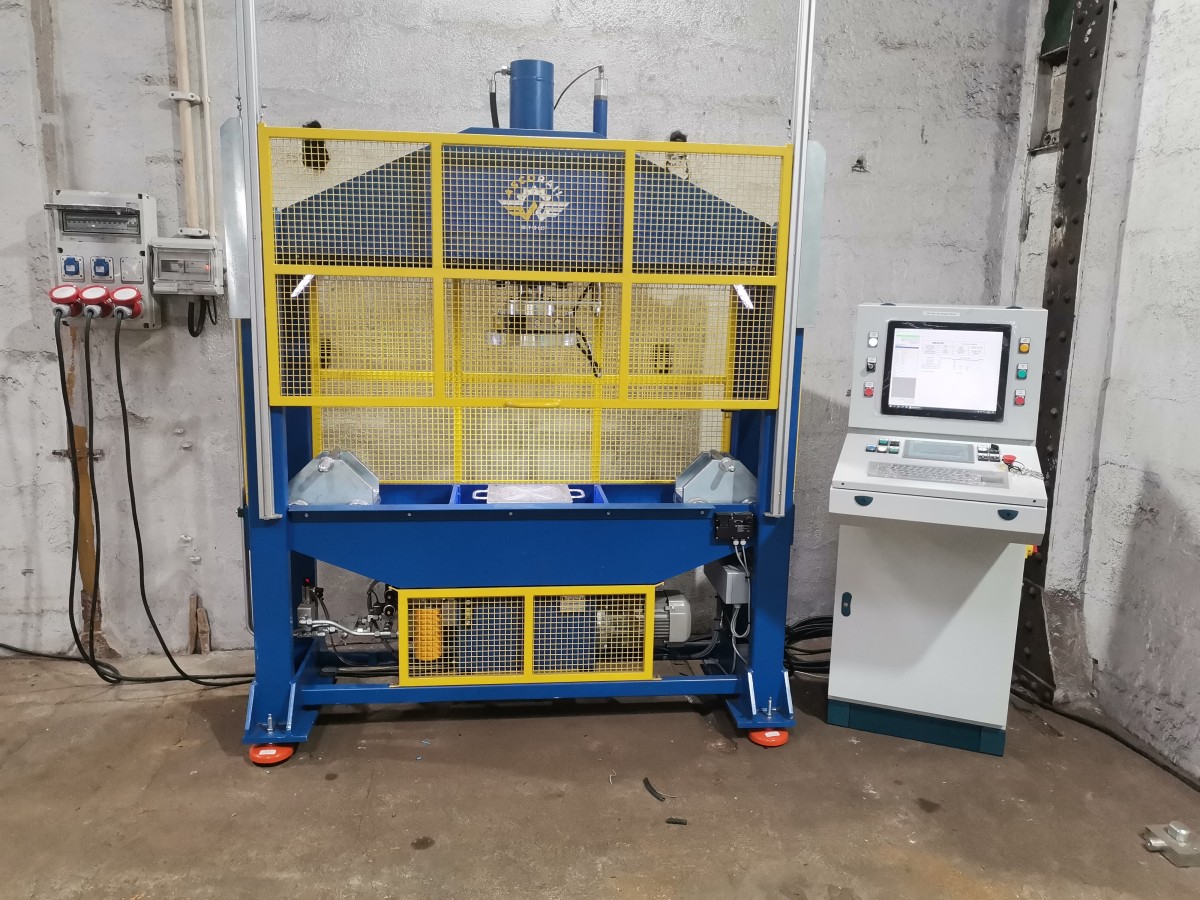

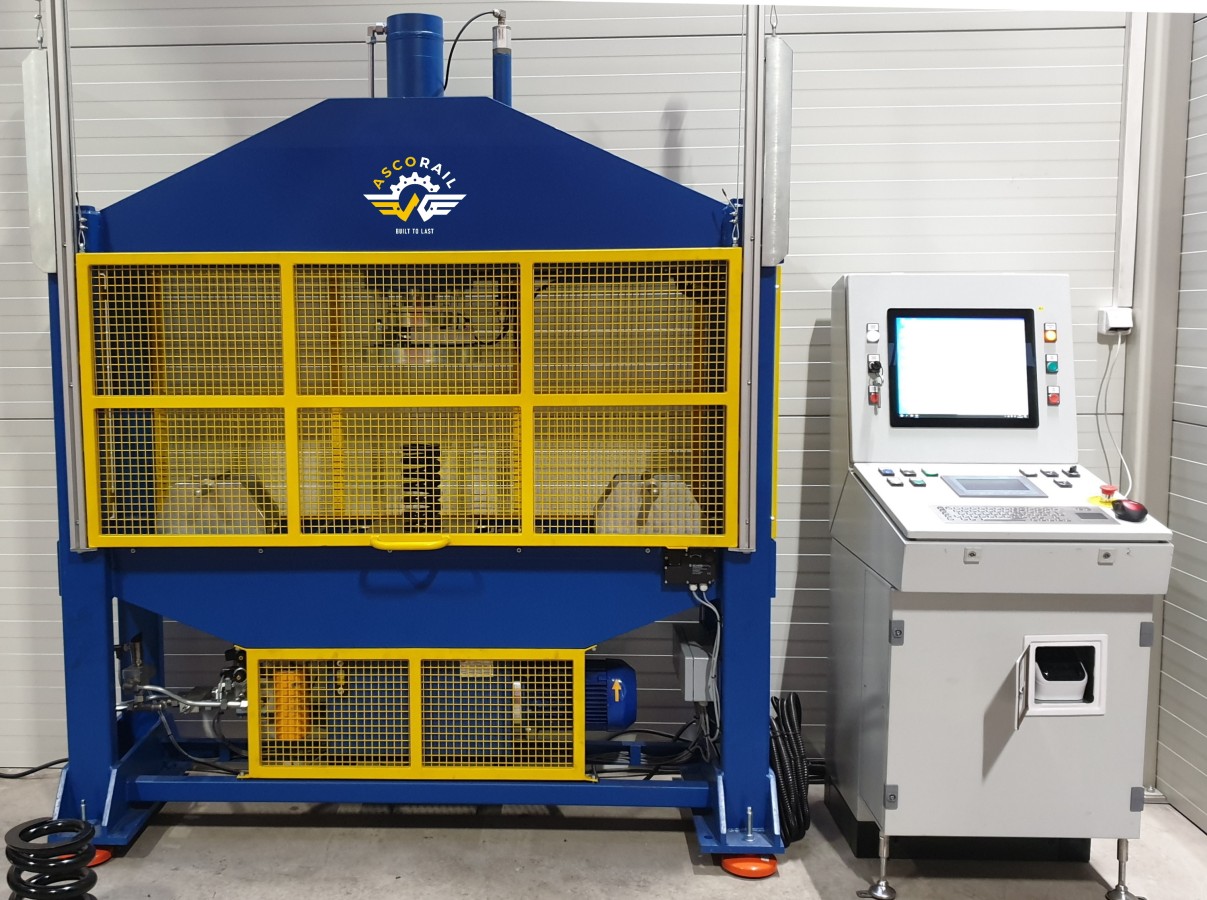

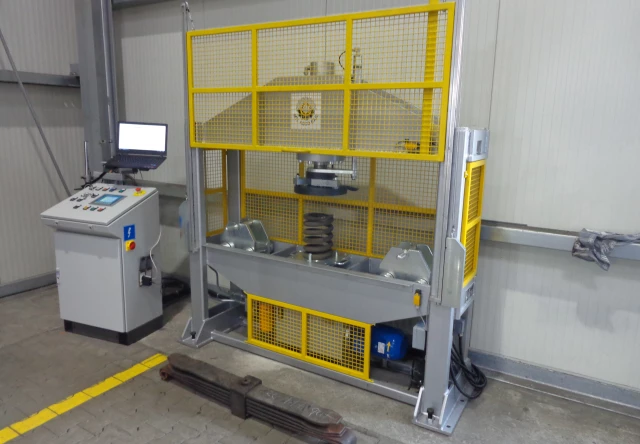

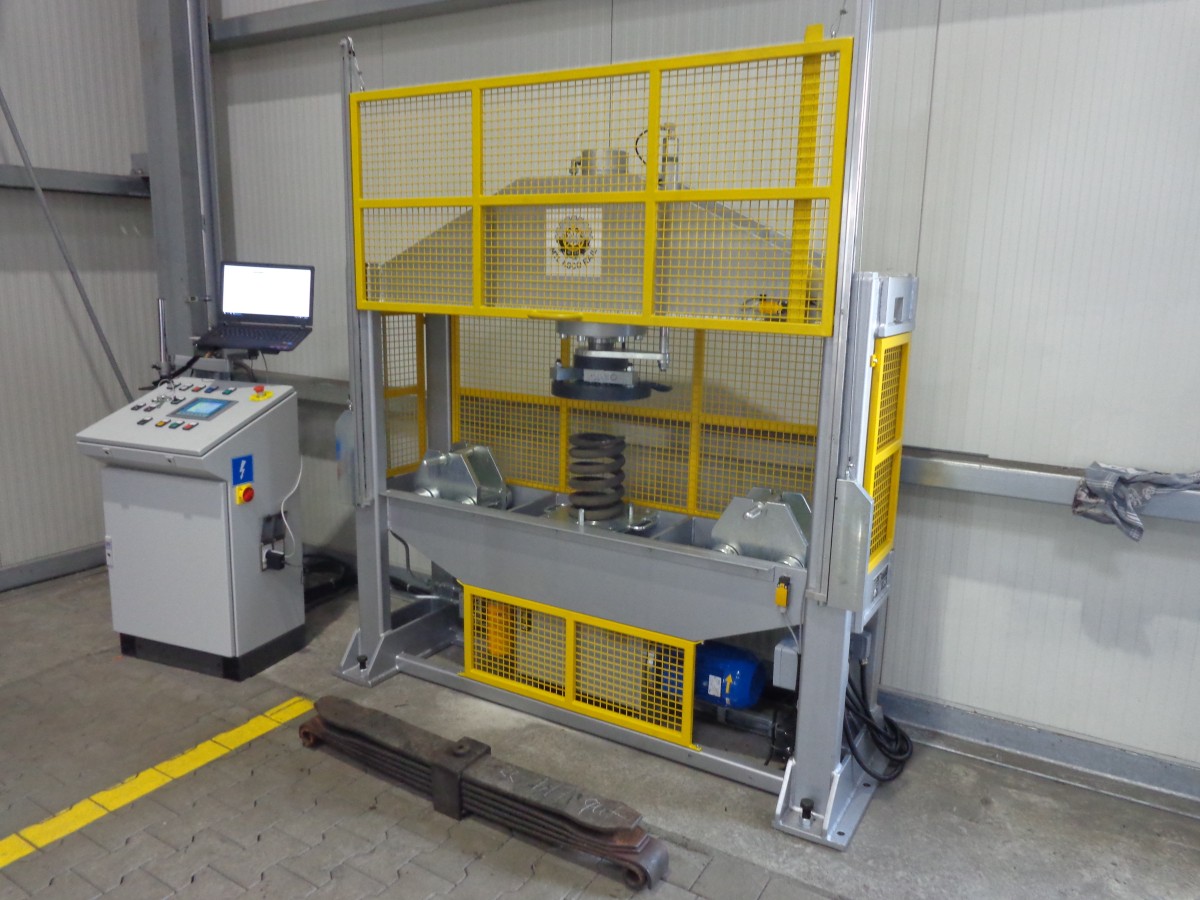

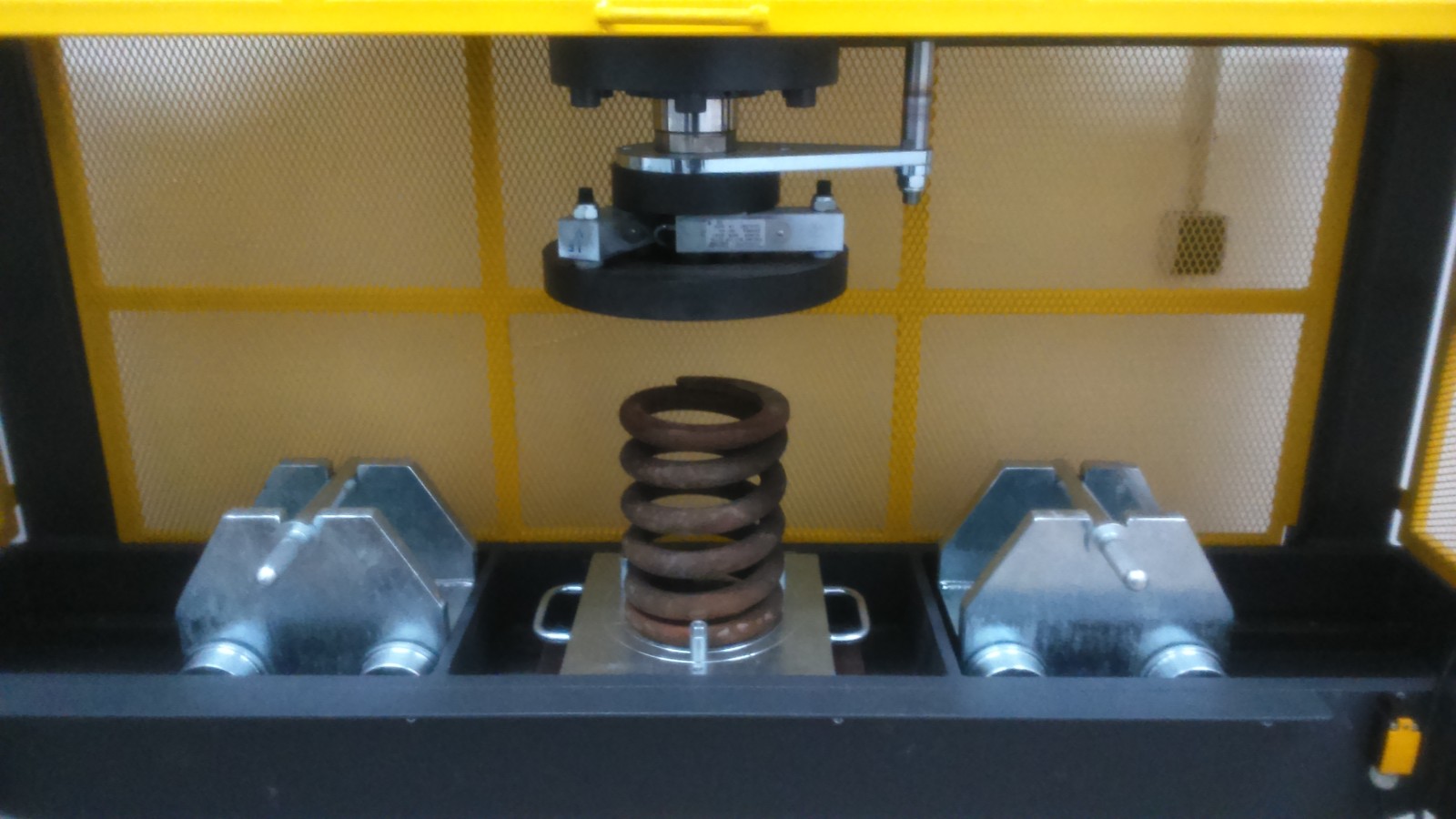

The coil and leaf spring test stand is designed to perform static test of conical bonded rubber spring, leaf & parabolic springs, helical springs and springs sets. Purpose-written software package allow to control the test stand, aid in test data analysis. Operator of the Leaf & Coil Spring Test Stand can program himself new test procedures, add or change springs parameters or create test reports.
Features:

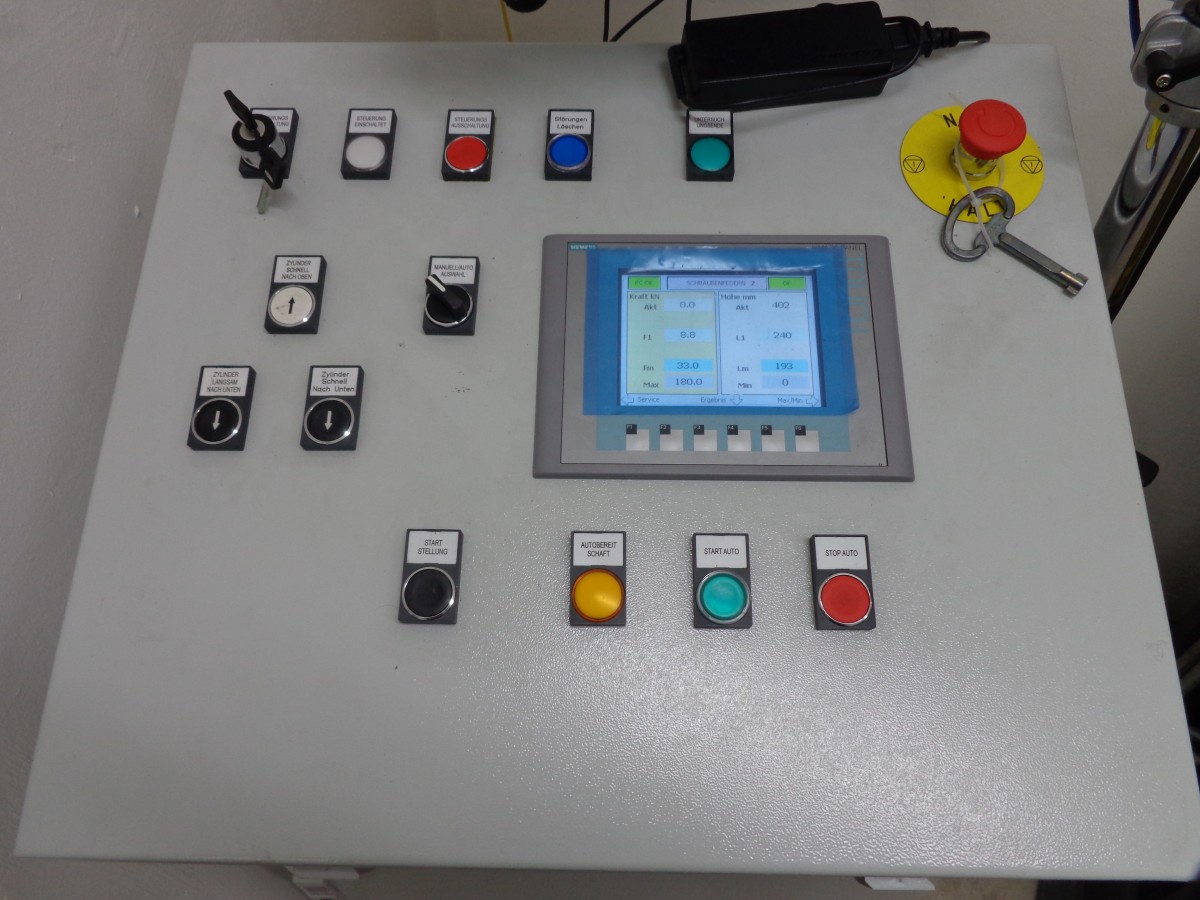

- Testing in manual or automatic mode,

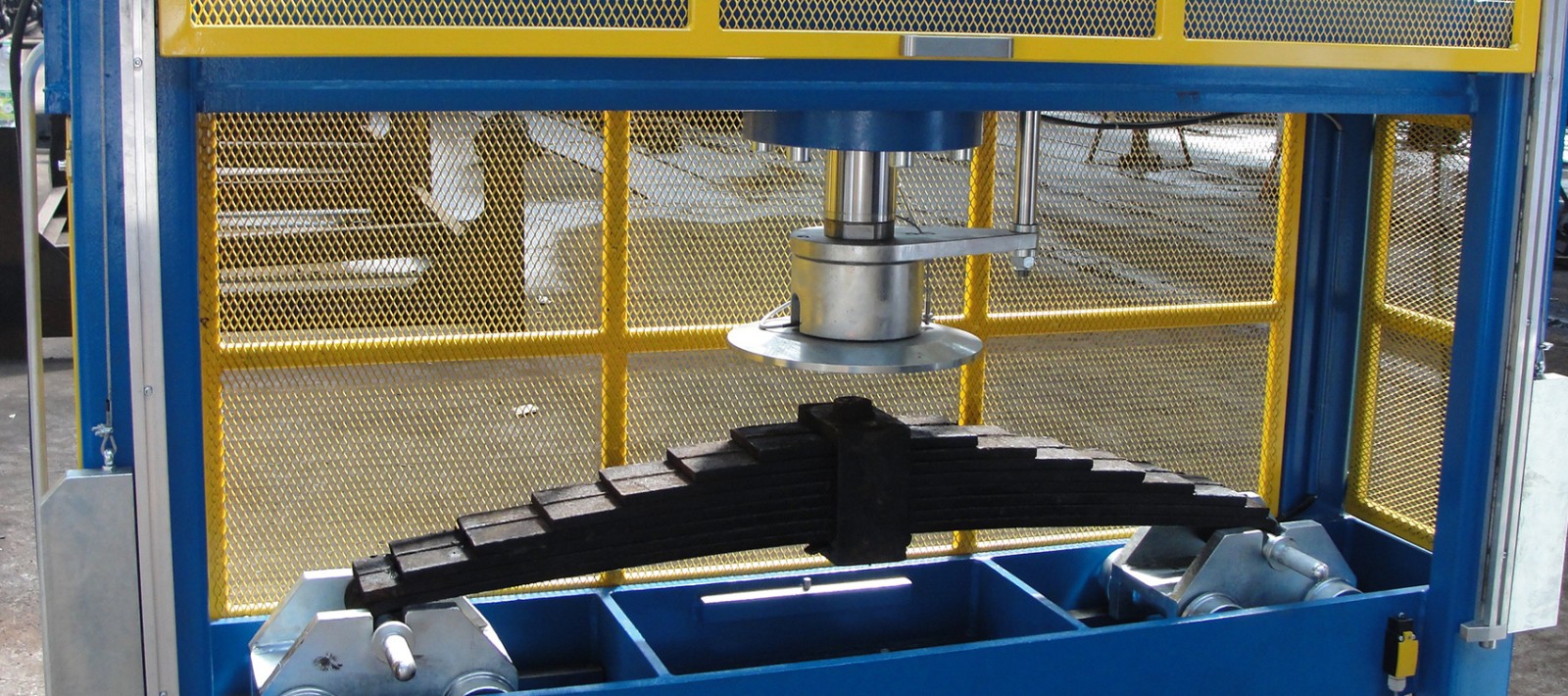

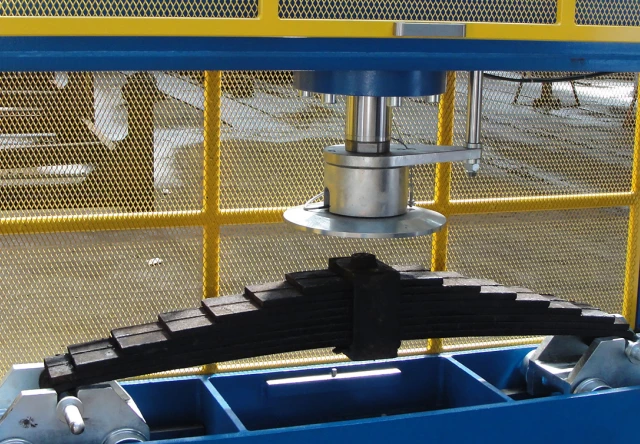

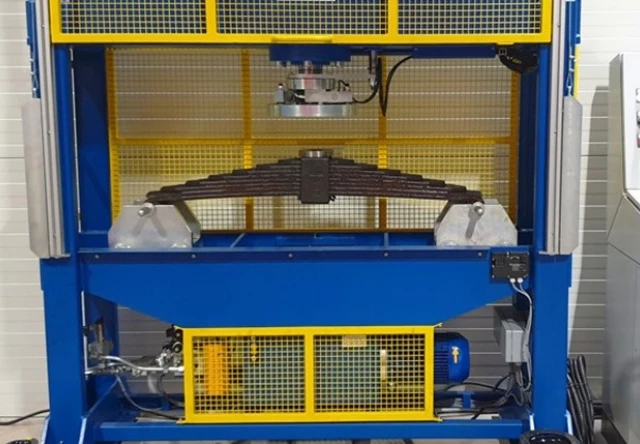

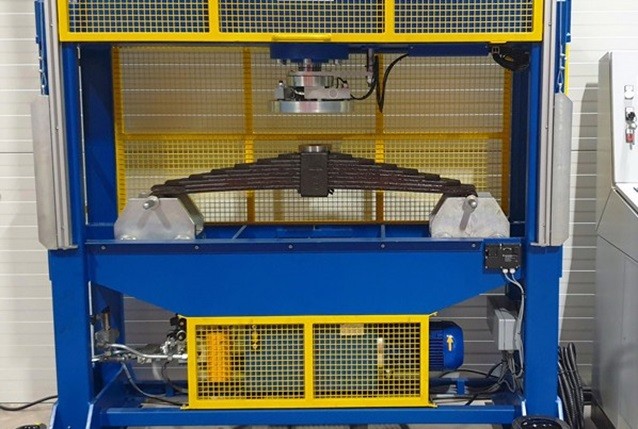

- Measurement of height of the leaf spring under near zero load and under set by operator load,
- Measurement of spring stiffness,

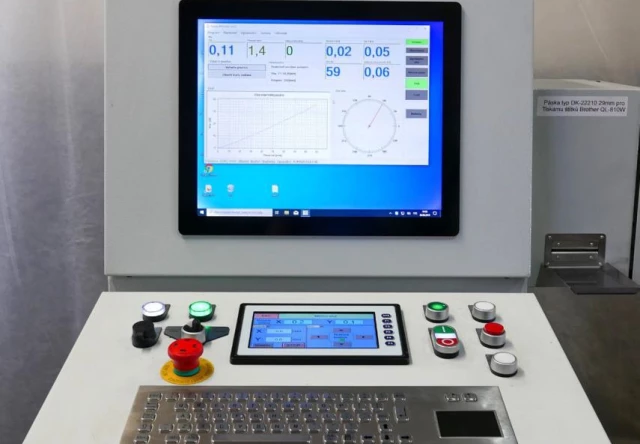

- Force/way diagram report,
- Testing of the springs in manual or automatic mode,
- Operator implement pre-programmed test modes, set tolerances and warning limit values of the springs,
- Collect and save measurement data, create reports as PDF or measurement files.
- Axial test load (maximum): 180 kN
- Load application: hydraulic
- Actuator stroke: 450 mm
- Actuator under load move: 8 mm/sec
- Fast actuator move: 20 mm/sec
- Measurement error of applied load: 1%
- Measurement accuracy of vertical movement: ±0,1 mm
