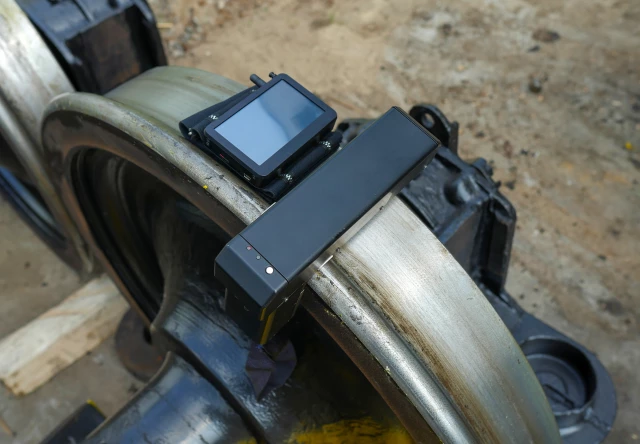

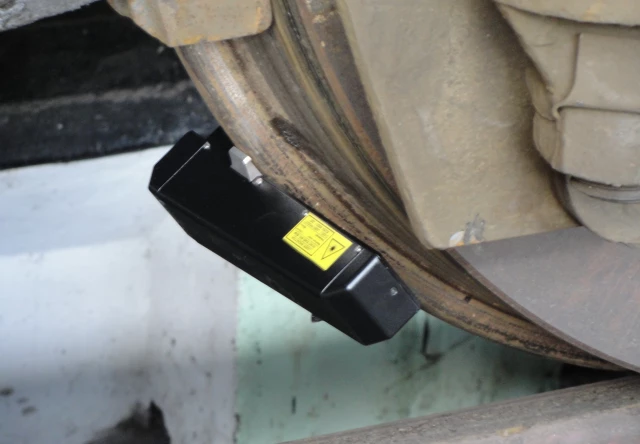

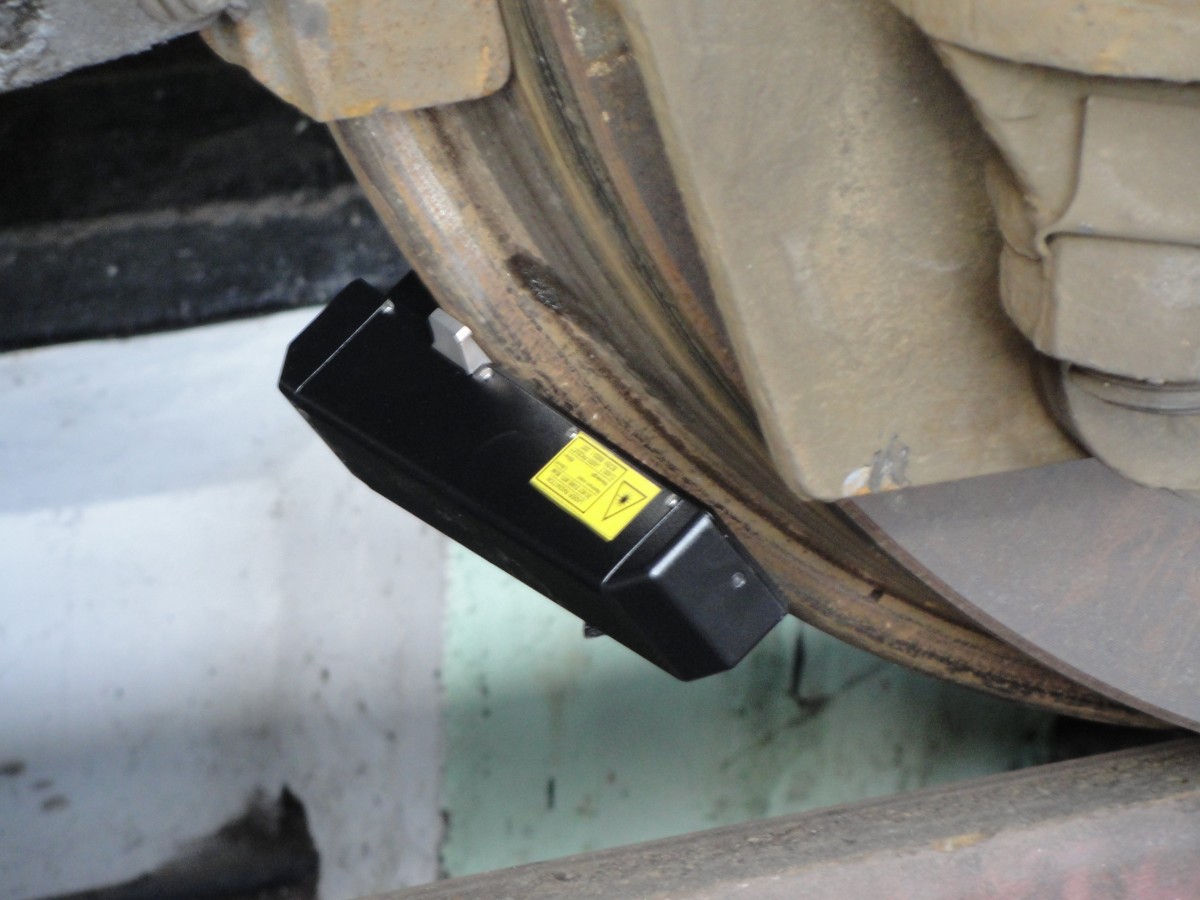

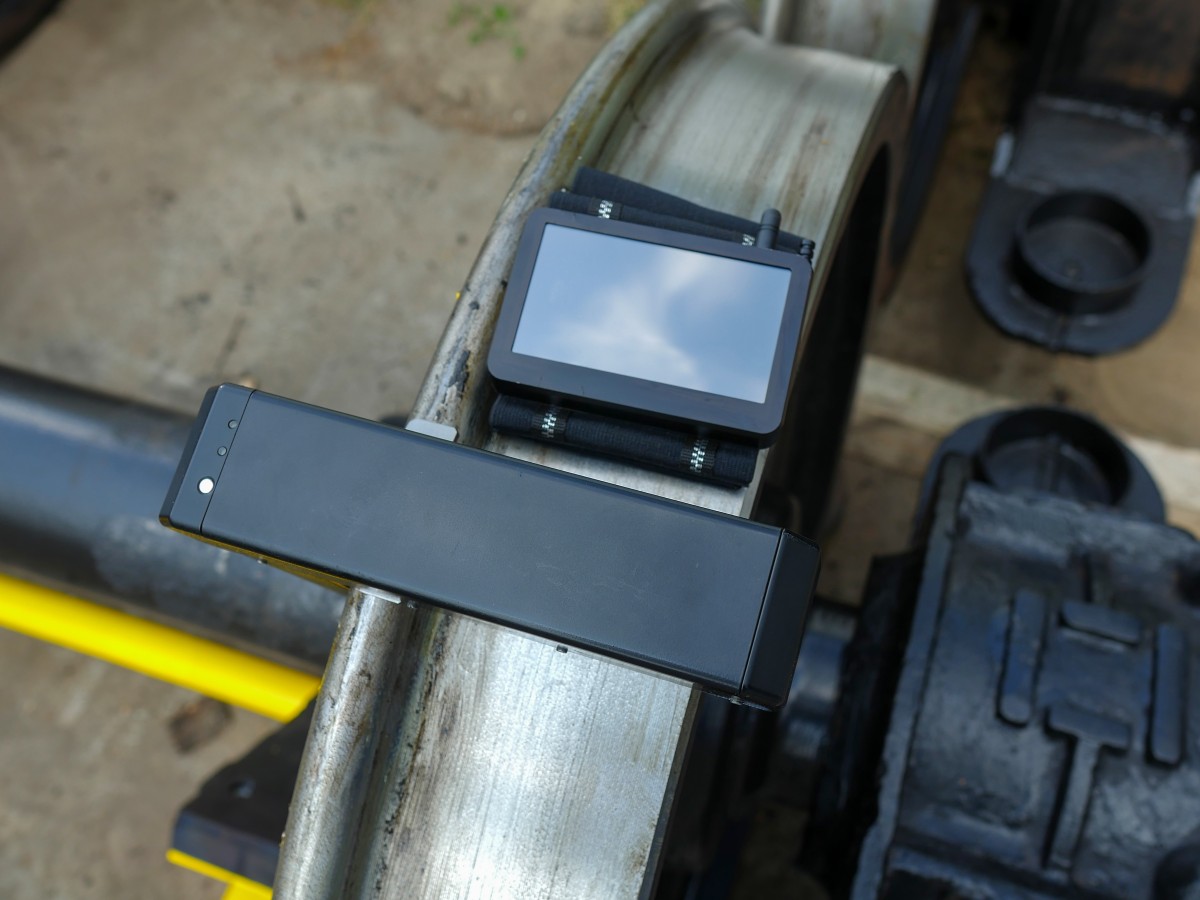

The laser profilometer is designed for:
  • measuring geometrical parameters of the wheel flange of solid wheels and rimmed wheels (thickness, slope, height),
  • taking full profile of the wheel roll surface,
  • detecting wheel flats and out of round wheels,
  • verification, registration and identification of measured wheel

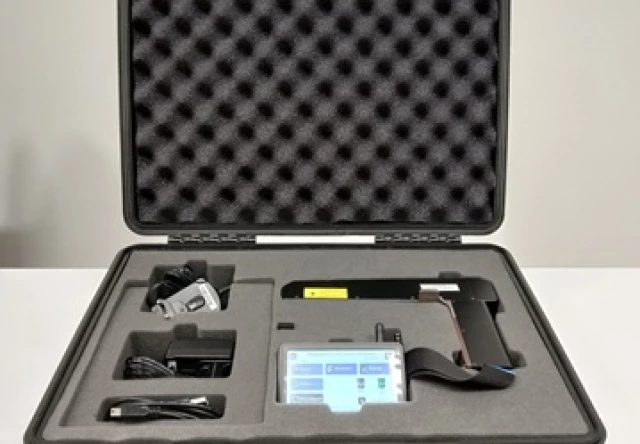

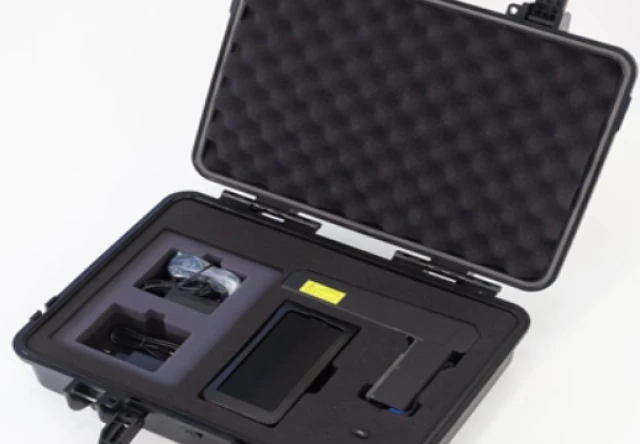

The measuring set includes:
  • measuring device,
  • calibration and control set - optional,
  • software (computer programme),

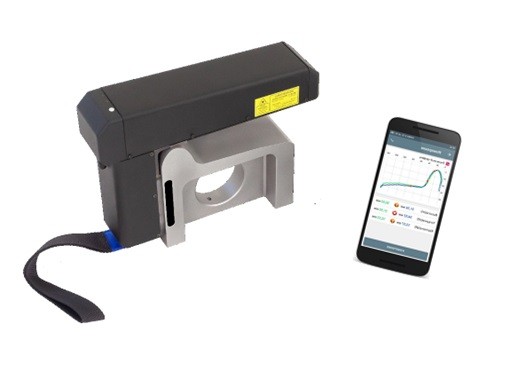

  • smartphone to visualization and record the measurement results (wireless connetion with profilometer),
  • chargers set,
  • cables for computer connection,
  • calibration certificate
  • case.

  • flange height Sh - measurement range 20-45 mm; measurement error 0,1 mm; resolution 0,01 mm;
  • flange thickness Sd - measurement range 20-50 mm; measurement error 0,1 mm; resolution 0,01 mm;
  • flange slope qR - measurement range 1-15 mm; measurement error 0,2 mm; resolution 0,01 mm;
  • minimum memory capacity - 100,000 measurements;
  • overall dimensions of the profilometer: standard 214x156x54 mm, short 201x114x54 mm, super-short: 213,5х90х54 mm;
  • power supply (laser scanning module): 3,7V, Li-ion rechargeable battery 5400mAh for standard IKP and 2400mAh for Short and SShort.
